CFD Consulting for Clean Room Design

The use of Computational Fluid Dynamics (CFD) modeling in the clean room industry allows users to gain insight into their designs with regard to flow patterns and flow fields, particulate dispersion characteristics, airborne chemical contaminates, and temperature uniformity. Better airborne particulate control and more energy-efficient clean room operation is made possible when the clean areas are evaluated using CFD. The results are depicted as 3D color graphics showing particulate and/or chemical concentrations, particle tracks, streamlines and velocity fields. The intuitive graphics allows even casual observers to determine the potential locations of vortices, recirculation regions, and adverse interactions between higher and lower classification zones. One of the fundamental advantages of CFD modeling is that the analysis uses non-intrusive, virtual modeling techniques and avoids any disruption to existing manufacturing lines until an optimized design is found.

Contact Us

What we do:

  • CFD analysis of particulate controlled spaces.
  • Projected particulate loading in the airspaces.
  • Calculation of flow fields and their effect on particulate control.
  • Chemical dispersion.
  • Identification of recirculation zones and design features that may lead to detrimental air flow.
  • Guidance for good air flow design in clean spaces.

Spaces Modeled:

  • Vial filling areas
  • Restricted Access Barriers (RABs)
  • Robotics
  • Cappers
  • Accumulators
  • Lyophilizers and Lyophilization Aisles
  • Flash freezers
  • All forms of Grade A, B or C aseptic clean rooms
  • Any class of clean spaces or controlled environment warehouses
  • Laminar Flow Hoods
  • Clean Benches
  • Semiconductor clean rooms & Work benches

Related Examples

clean room design

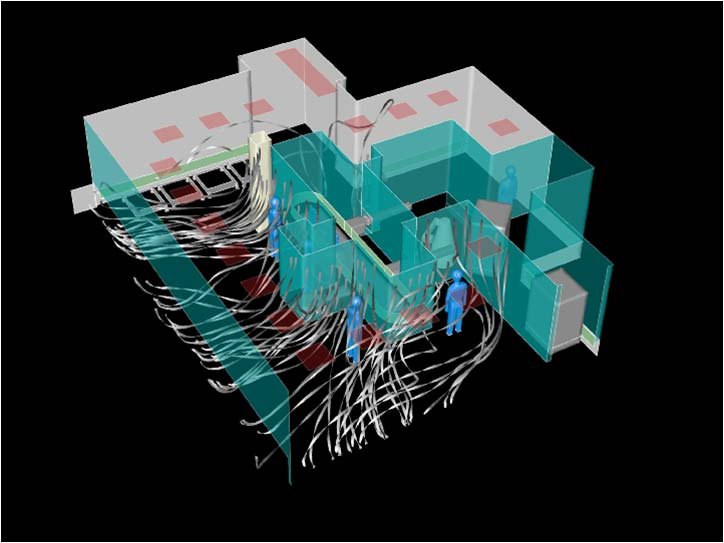

Streamlines from a Grade A area to a Grade C area
clean room design

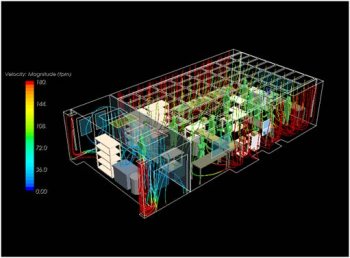

Color coded velocity streamlines in a 3D view
